VINIPET® B5B White Wiggle Wire

★ White plastic powder, harmless to the film;

★ Two thick ends, easy to install with high efficiency;

★ Coating with engineering plastic powder, better anti-aging character;

★ 8 steps of procedures, high-quality standard.


Product Manual| Technical Parameters| Accessories| Application| After Sales Service

1. Product Features
(1)White color absorbs less heat, to extend the film life
The black color may absorb more heat, the touch area between wire and film may be the degree of 60 – 80, it may burn the film after a long time. The film may break along the wire and cause the greenhouse collapse. The white wire may absorb less heat and no harm to the film. It will not cause high temperature in the touch area and burn the film. So the film life may be longer.
(2) Project plastic powder lasts a long life
The life of wiggle wire depends on “elongation at break” and “extensibility” character of plastic powder coated. The powder of B5B wiggle wire adopts is the engineering plastic powder used on highway fence. It can increase 30 – 50% on elongation at break and 20-30% on extensibility. The life may be longer.
(3) More thick at two ends, easy to install
There is more thick treatment and round at two ends, so it may not cut the film. During the installation, the wiggle wire may protect the film and the worker, to raise the efficiency.


2. Development History

In 2000, VINIPET® Wiggle Wire was invented and sold in Japan;
In 2003, VINIPET® Wiggle Wire was indicated as government procurement product of Shanghai;
In 2011, VINIPET® Wiggle Wire sales had been over 26 million pieces in China;
In 2015, two ends thick design brought innovation to the wiggle wire, and new vinipet B6 wiggle wire went on the market;
In 2016, VINIPET® B5B White Wiggle Wire went on the market and received good reviews from users;
In 2017, as the only participant Beijing Fenglong laid down the Wiggle wire standard for greenhouse JB/T13080-2017.


3. Product Features and Case
(1) VINIPET® Wiggle Wire features
(a) Quality: VINIPET® Wiggle Wire was designed forJapanby Japanese standard, it has 8 steps of procedures with special spring steel wire. It uses anti-aging resin, and is made in strict management system; it has been exported toJapan for 18 continuous years.
(b) R&D: Headed by the general manager, the Japanese and Chinese engineers formed a team along with university researchers, the team handled problems in the productions.
(2)Cooperation
Our company maintains a long-term strategic relationship with Japan's Mitsui Chemicals, Kyowa Chemical Industry, C.I. Takiron, RIKEVITA, and the Institute of Chemistry Chinese Academy of Sciences and Chinese Academy of Agricultural Sciences.

(3) Case
Thru years of marketing, Our company products have been used in many big growing bases within China and in many other countries, including Japan Toto, Israel Netafim, France Richel and many big plant bases in China.

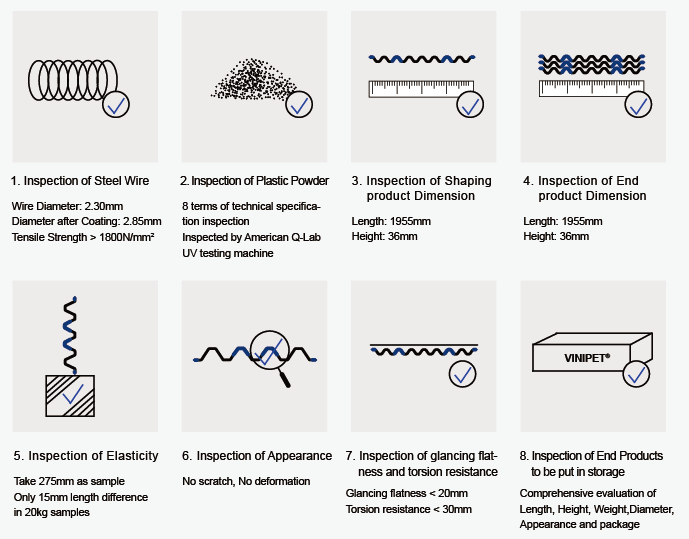

4. 8 Steps of Inspection Procedures



5. Test inspection comparisons

(1) 14 grade wind simulation test

The load for 14-grade wind is 133 kgs per sqm, to stand 14-grade wind, the wiggle wire should stand 260kgs or above per sqm. According to the test, 2 vinipet wiggle wires stands the load of 580 kgs, and each wiggle wire is sharing 290 kgs, which meets the 260kg requirement.

(2) Anti-aging test

To have 5 years of good performance for VINIPET® B5 Wiggle Wire, our company introduces Q-Lab machine to check the VINIPET® B5 Wiggle Wire regularly.

(3) Wiggle wire straightness test

Uninstall the vinipet wiggle and the other brand of wiggle wire from the channel and compare them as in the picture.
